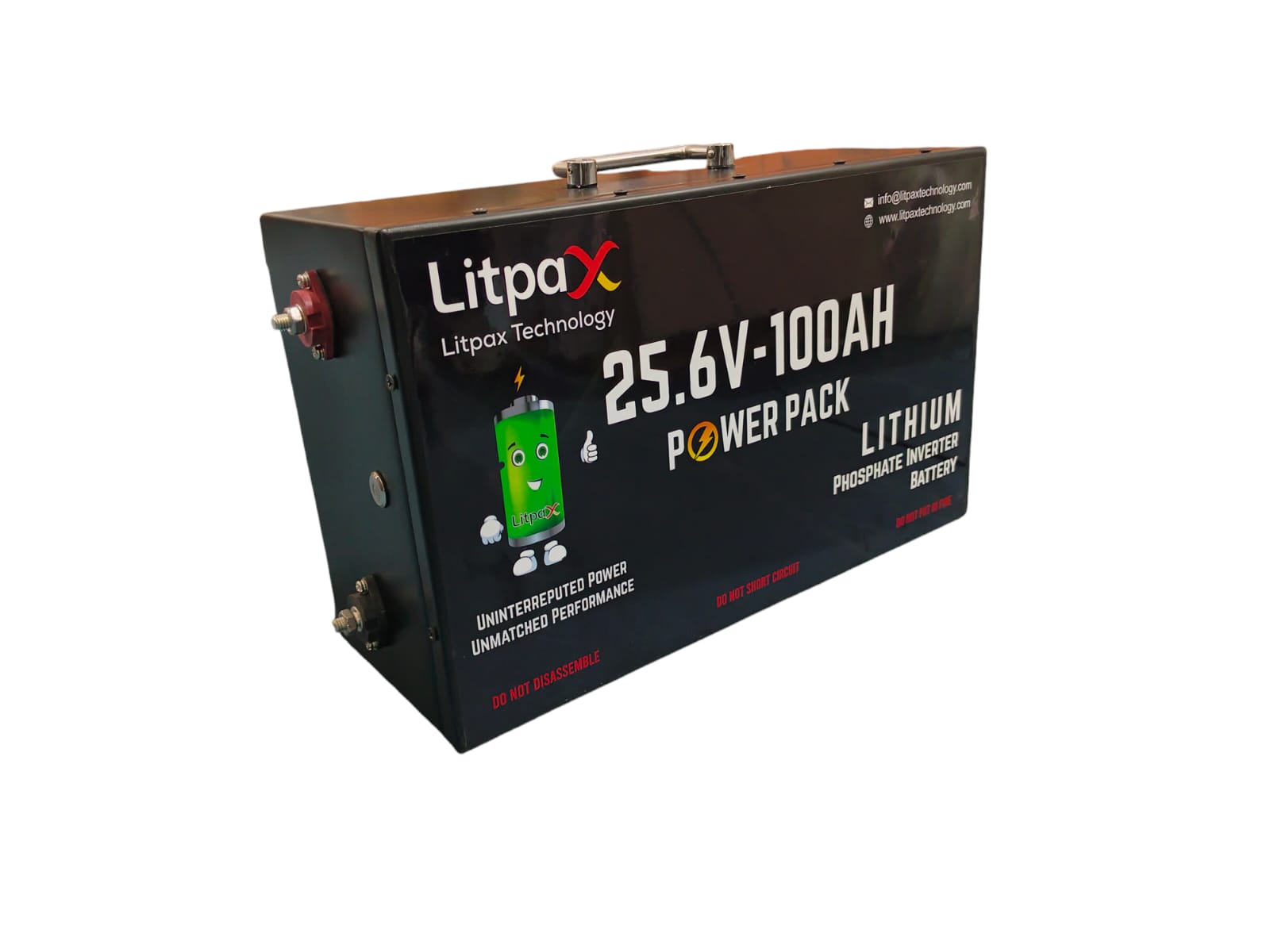

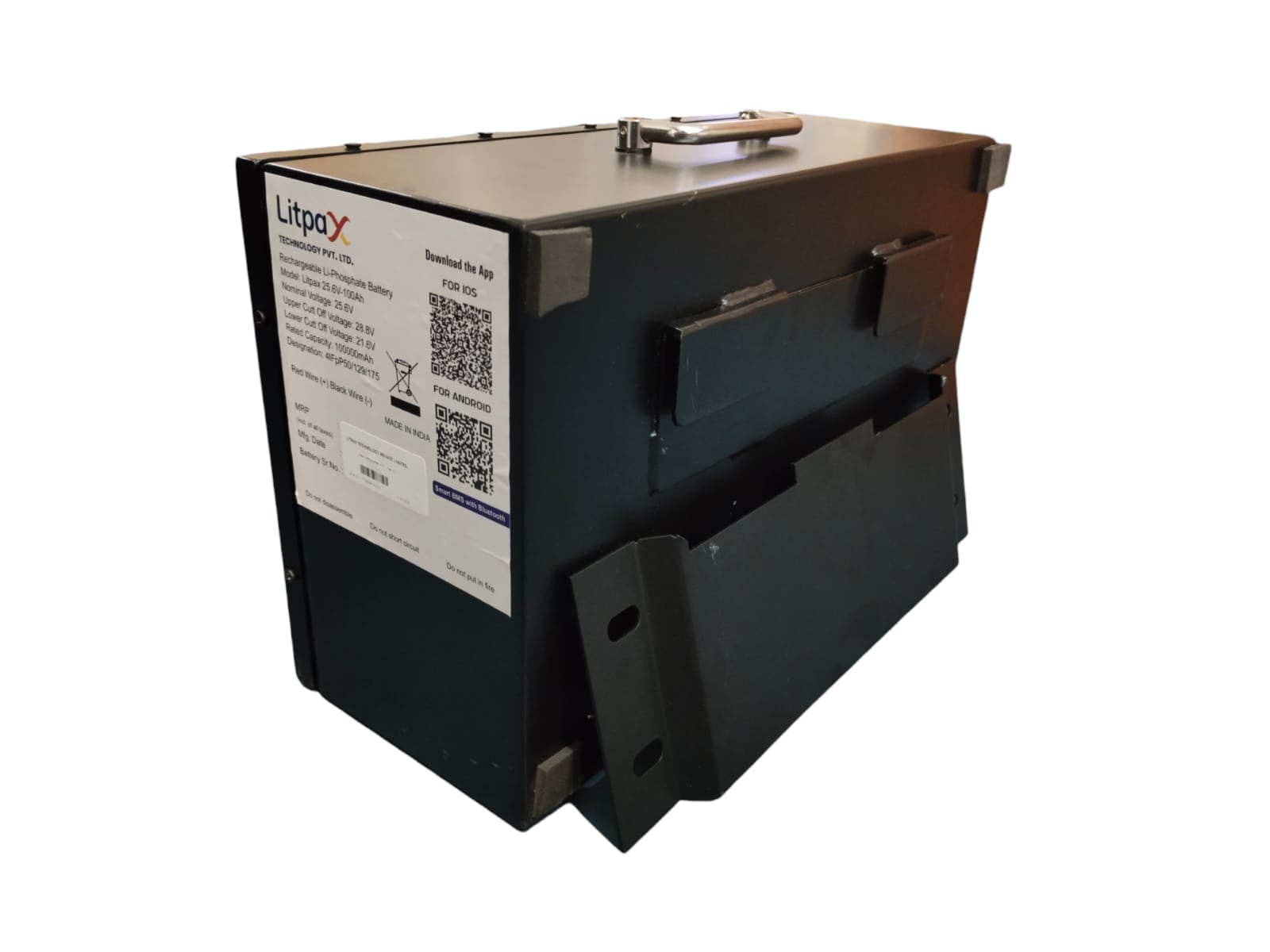

Litpax 25.6V 100Ah Lithium Phosphate Battery for Home Backup System/ Home Inverter
.jpg "Solar Battery")
.jpg "Solar Battery")
We are the leading solar batteries manufacturer in India. We offer products, solutions, and services across the entire energy value chain. We support our customers on their way to a more sustainable future.
Reliable Power Backup: This inverter battery provides a dependable power backup solution for your home or office during power outages.
Efficient Energy Storage: With advanced lithium-ion technology, it efficiently stores and supplies electricity when needed.
Long-lasting Performance: Designed for durability, this battery offers a long service life of up to 10 years with proper maintenance.
Easy Integration: Compatible with various energy storage systems, it seamlessly integrates into your existing setup.
Safe Operation: Equipped with multiple safety features, it ensures safe and secure operation at all times.
| 25.6V | 100AH |
| 25.6V | 150AH |
| 25.6V | 200AH |
| 25.6V | 300AH |
| 25.6V | 100AH |
| 25.6V | 150AH |
| 25.6V | 200AH |
| 25.6V | 300AH |
| Lithium | Details | Lead Acid |
|---|---|---|
| Rs-32,000 | Price | Rs-28,000 |
| 15 years | Battery Life | 3 years |
| 1 battery | Need in 15 Yrs | 3 battery |
| Rs-32,000 | Total Cost | Rs-84,000 |
| Rs-52,000 | Profit in 15 yrs | Rs-0 |
| 6 Hours | 400 Watt Backup Time | 4 Hours |
| 1% Monthly | Self Discharge | Avg. 33% Monthly |
| Lithium | Details | Lead Acid |
|---|---|---|
| Rs-32,000 | Price | Rs-28,000 |
| 15 years | Battery Life | 3 years |
| 1 battery | Need in 15 Yrs | 3 battery |
| Rs-32,000 | Total Cost | Rs-84,000 |
| Rs-52,000 | Profit in 15 yrs | Rs-0 |
| 6 Hours | 400 Watt Backup Time | 4 Hours |
| 1% Monthly | Self Discharge | Avg. 33% Monthly |
| Brand | LITPAX |
|---|---|
| Manufacturer | Litpax Technology Pvt Ltd |
| Model | 25.6v-100ah |
| Model Name | Litpax Inverter Battery |
| Product Dimensions | 40 x 16 x 25 cm; 22 kg |
| Batteries | 8 Unknown batteries required |
| Item Model Number | 25.6v-100ah |
| Number of Items | 1 |
| Voltage | 25.6 Volts |
| Battery Capacity | 100 Amp Hours |
| Battery Cell Composition | Lithium-Phosphate |
| Does it contain liquid? | No |
| Item Weight | 22 kg |
| Battery Capacity | 2688WH |
|---|---|
| Battery Type | LFP |
| Chemistry | Lithium Phosphate |
| Cell Package Type | Prismatic Cell |
| Capacity | 100AH |
| Operation DOD Range | 95% |
| Nominal Voltage | 25.6V |
| Battery Configuration | 8S 1P |
| Voltage Range | 21.6V TO 28.8V |
| Upper Cut Voltage | 21.6V +/- 0.02V |
| Lower Cut Voltage | 28.8V +/- 0.02V |
| Rated Charging Current (Standard) | 0.2C |
| Peak Charging Current | 1C |
| Rated Discharge Current | 3C |
| Charging Current | Up to 40AMP |
| Discharging Current | 100AMP |
| Peak Discharge Current | 3C for 10 Sec |
| Operating Ambient Temp (Charging) | 0 to 50ºC (cell temperature) |
| Operating Ambient Temp (Discharging) | -20 to 60ºC (cell temperature) |
| Storage Temp (6 months) | 0 to 35ºC (50% SOC) |
| Lifecycle @ Ambient 25ºC | 3000 cycles @ 80% DOD@0.2C |
| Self Discharge | 2.25% / month |
| Package Dimension (L x W x H) | 44*16*25 cm |
| Weight | 22Kg +/- 2Kg |
| Cycle Definition | One complete charging and discharging considered to be a cycle |
| Protection | Overvoltage, Under-voltage, Short Circuit, Over Temp Protection (Charge & Discharge) |
| Battery Pack Orientation | Up-right |
| Parameter | Recommended Value | Remarks |
|---|---|---|
| Battery Type Setting | Lithium (LiFePo₄) | Select LFP or "User Defined" if specific type isn’t available |
| Nominal Battery Voltage | 24V (actual 25.6V) | Inverter must support 24V nominal lithium batteries |
| Battery Capacity | 100Ah | Set to 100Ah or as per actual battery capacity |
| Low Voltage Cut-Off | 22.6V – 20.8V | Prevents deep discharge; follow battery manufacturer’s recommendation |
| Low Voltage Recovery | 22.4V – 23.2V | When inverter resumes operation after low voltage |
| Charge Voltage (Bulk/Absorb) | 28.4V – 29.2V | Typically 28.8V is ideal for LFP batteries |
| Float Voltage | 27.2V – 27.6V | Not always required for LFP; can be disabled or set lower |
| Over Voltage Cut-Off | 29.6V – 30.0V | Safety shutoff to prevent overcharging |
| Over Voltage Recovery | 28.4V – 29.0V | Restarts charging when voltage drops to safe range |
| Charging Current Limit | ≤ 50A (0.5C of 100Ah) | To increase battery life; check battery BMS max charging current |
| Discharging Current Limit | ≤ 100A (1C of 100Ah) | As per BMS/discharger rating |
| Temperature Protection | Enable (0°C to 60°C operating range) | Ensure inverter stops charging below 0°C or above safe limits |
| Communication Support | Optional (CAN/RS485 with BMS) | For advanced systems, ensures precise BMS-inverter sync |
